Designed and built a custom 3D-printed water-spraying turret as a creative Secret Santa gift. The turret featured two stepper motors and an OpenMV camera for real-time tracking of cats, plants, or people, spraying them with water when detected. A custom 3D-printed nozzle, designed using fluid dynamics principles, was developed to optimize the water spray pattern. The turret used an N-channel MOSFET to control a 12V impeller motor, and a slip ring ensured the wires didn’t tangle during 360° rotation. Limit switches on the vertical motor kept movement within safe bounds. The entire model was iterated and created in Fusion 360, showcasing a blend of mechatronics, 3D design, and fluid dynamics expertise.

• FeaturesWater Spraying Turret, Camera Tracking
• TechMOSFETS, Fusion 360, Python, Fluid Dynamics, OpenMV Cam H7, Stepper Motors, Slip Ring, USB C Power Delivery, 5V Voltage Regulator, A4988 Stepper Motor Drivers, Limit Switches
• Tools3D Printing, Soldering

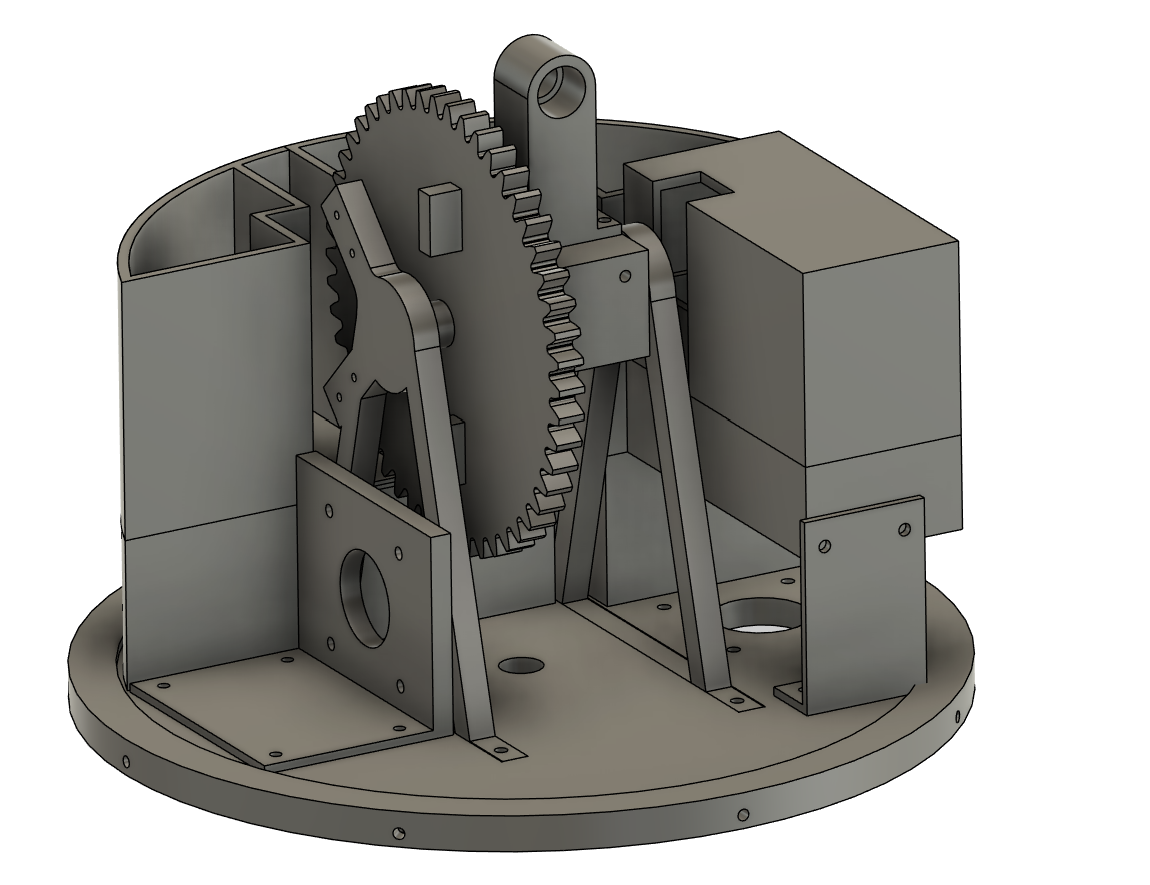

Cat Turret Top CAD Model

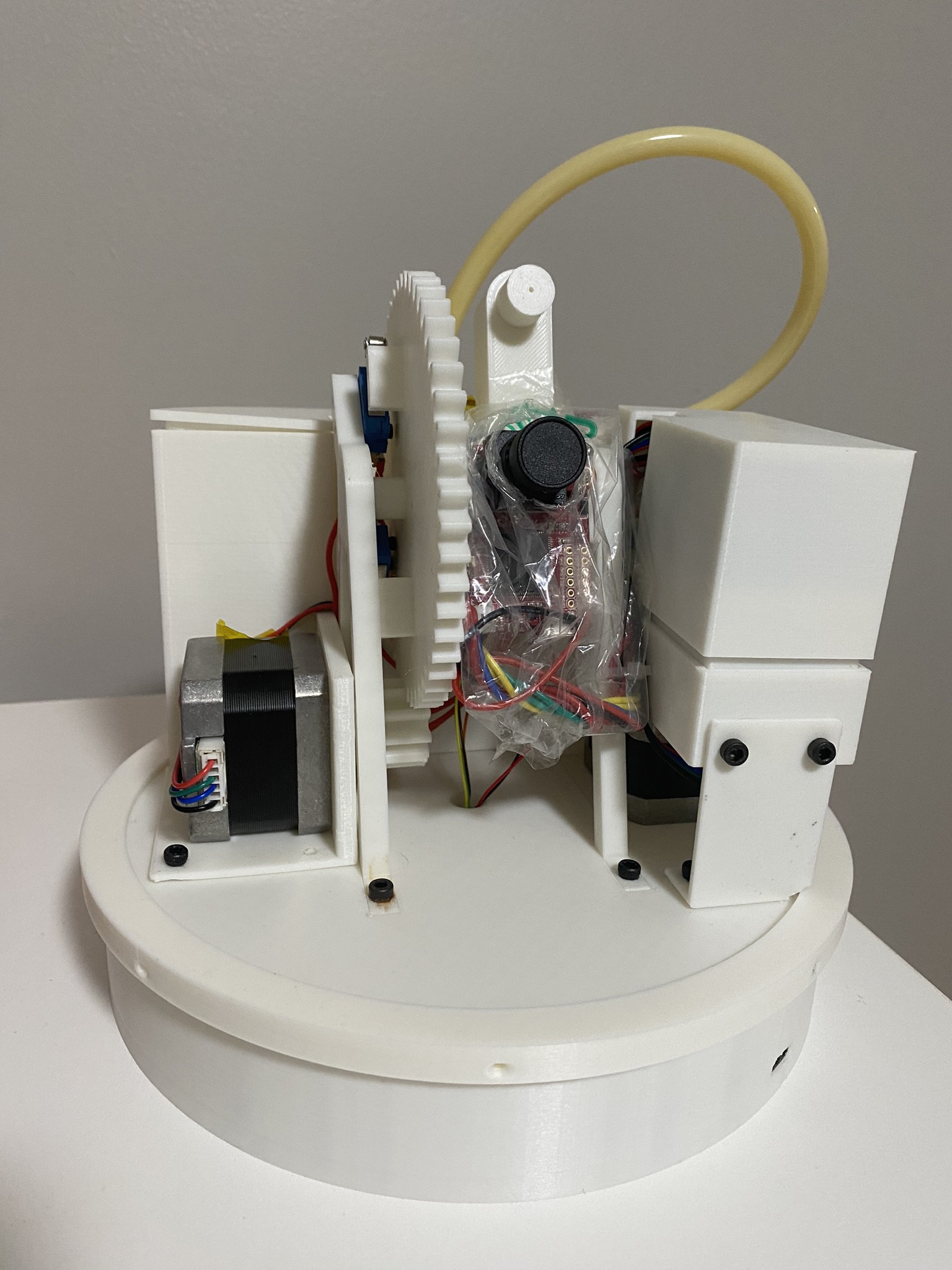

Cat Water Turret
